  Faucet, filters, and installation kits included. See Owner's Manual |

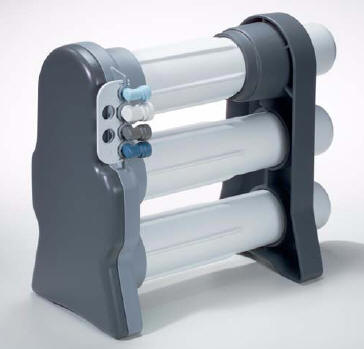

The Merlin is tankless reverse osmosis system that provides continuous, on-demand water. It features a breakthrough high flow-rate technology developed by GE Infrastructure Water & Process Technologies. The Merlin RO system is designed for residential use and light commercial applications including: • Residential • Restaurants • Coffee Shops • Grocery Misters • Aquariums The Merlin system is the most revolutionary innovation in point-of-use RO technology since the first such units were introduced. Water treatment professionals can now offer their residential and light commercial customers an exclusive improvements over other water purification methods.
Merlin RO
Specification
Merlin RO
Performance |
|
720 Gallons Per Day! 0.5
Gallons Per Minute Merlin is a breakthrough in reverse osmosis technology, it can handle 720 gallons per day, whereas, other similar size system under $1000 can only do 15 Gallons to 75 gallons per day. At 720 gallons per day, it can out 0.5 gallons per minute to meet all your light commercial and residential use. At 0.5 gallons per minute, it does not need a pressure storage tank. This makes it unique to all the other reverse osmosis system in the market.
Why Tankless? Say No BPA
Chemicals |
 |
This system has been tested according to NSF/ANSI 58 for reduction of substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 58. The substances are: Arsenic, Barium, Cadmium, Chromium (Hexavalent), Chromium (Trivalent), Copper, Fluoride, Lead, Nitrate, Nitrite, Radium 226/228, Selenium and TDS. |
Reverse Osmosis Technology
This system uses the Reverse Osmosis process where water is forced through a semi-permeable membrane, leaving unwanted pollutants and contaminants behind. A Reverse Osmosis unit will provide you with clear, clean, fresh drinking water. The process uses no chemicals or electricity. It's the most effective technology known for the improvement of drinking water.
Applications

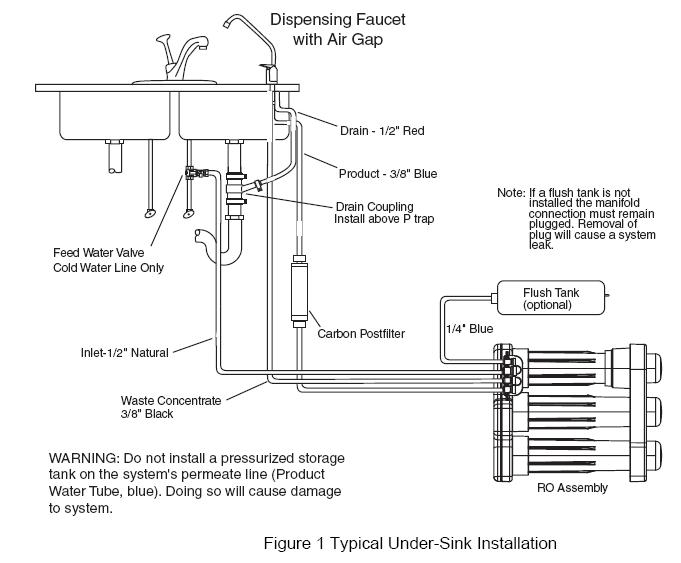

Residential Under
Sink |

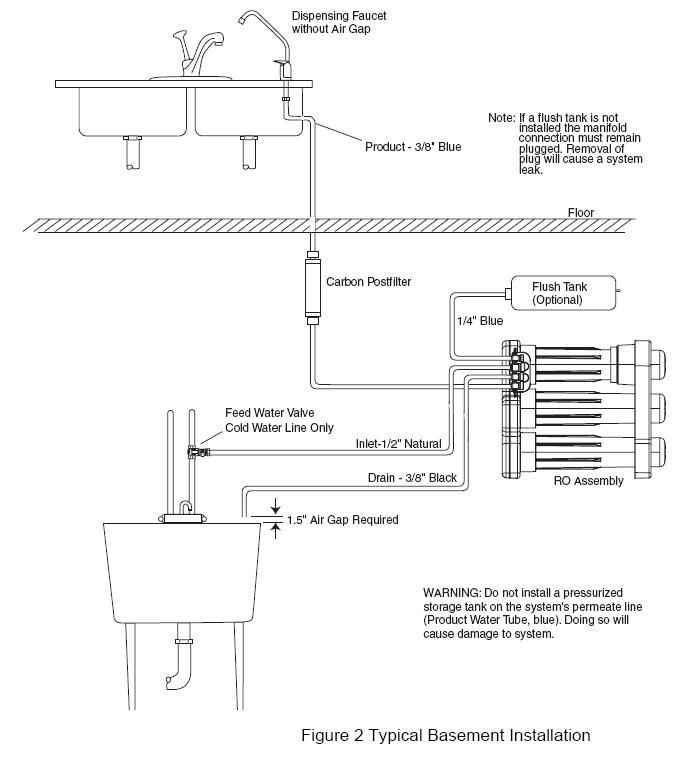

Residential: In Basement |
Merlin Permeate Storage
Systems
The Merlin is designed to provide an
average 1/2 gpm (1.89 Lpm) continuous
flow rate at NSF/ANSI 58 conditions.
Some applications may require an
intermittent flow rate higher than the
1/2 gpm rate. This can be accomplished
by using a permeate storage tank.
 |

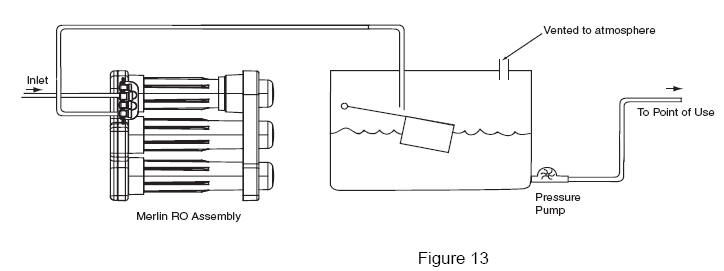

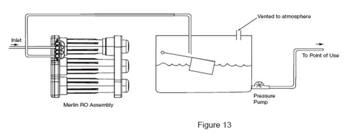

Type Of Storage Tank Pressurized storage tanks create a backpressure on the system that will reduce performance. For this reason we recommend the use of an atmospheric storage tank with a float shutoff for storing permeate water as shown in Figure 13. |
Restaurant, Beverage
Store, Commercial and Industrial
Applications
|
 |
Reverse Osmosis System VS. Whole House Filter
A Whole House Systems will likely remove less than 20% of contaminants in tap water.
Reverse osmosis systems can remove up to 99.9% of contaminants.
They are different technologies for two different usages. One of the biggest misunderstandings in the market today is consumer thinking that a whole house filter system is designed for drinking water. It is not!
500 Contaminants in Tap Water: A shocking Discovery
Drinking tap water is like pouring chemicals and other contaminants into our body. It is like smoking which will not kill us immediately, but we know it is very detrimental to our health and irreversible. Children are more vulnerable then adults since they are growing and have a smaller body mass. What are you doing to protect your family’s drinking water?
Don't Risk Your Family's Drinking Water
The Environment
Protection Agency compose a list of
contaminants in drinking
water that are health hazardous. When it comes to water
pollution, the tap water in Canada is
not that much better than that in the
US.
It is no longer the question of what
is in our tap water, it is now a
question of what can we do to protect
our family's drinking water.
Health is Wealth
Our health is our wealth. The human body composes of 70% water, and needs 7 glasses of water everyday to prevent dehydration. Tap water taste very bad and there are all kinds of waste and contaminants in the water.
To drink tap water is to pour chemicals into our body
A Healthy Lifestyle
Most people do not drink 7 glasses of water per day. Most people get dehydrated without knowing because they avoid drinking contaminated tap water and high sugar content soft drink. Children are easier to get dehydrated because parents tell them not to drinking dirty tap water, and not to drink soft drink. Your family will live a more healthier lifestyle because our Reverse Osmosis water is so tasty, you will drink more water.
Pure Water At Your Convenience
 |
The beauty is the convenience of having pure water right in your kitchen when ever you need it. That is about 7 times a day per person. And if you are the cook at home, it is about 20 times a day. Now no bottles to left, never run out of pure water. Just the convenience and the time you saved is worth its weight in gold. |
Installation
Do-it-yourself kits included. You
can install your unit under the kitchen
sink or in basement.
Merlin RO Owner's
Manual
We can provide installation for $120
within GTA area, otherwise, you can
higher a plumber to do the job.
Specifications
| Size Of System |
|
Length: 20.34 inches Depth: 9.68 inches Height: 17.05 inch |
| Minimum and Maximum Operating Conditions |
*System is designed for use on potable water sources only. |
Food and Beverage Industries
 |
This system is great for the
food and beverage industries.
It will bring out the taste of
your coffee, drinks and cooking.
You can serve your top customers
with filtered water instead of
bottled water. Cocktail Drinks Make the best cocktail drinks in your life. The first secret is in you skills, the second secret is in your RO-Pure water. |
 |
Good-bye to Costly Bottled Water
Say good-bye to your bottled water for two reasons.
1) A jug of bottled water is about 20 lbs, it is an accident asking to happen. Why take a chance for you or your loved one to hurt the back trying to left 20 lbs from the grocery store to the car, up the stairs, and put on top of a water cooler? Don't do it, back injury is one of the most serious and takes many years to heal 90%. Just for this one reason, a water system is worth it weight in gold to have in your kitchen. Do you agree?
2) Delivered bottled water is about $7.99 per jug, that is expensive. For a family of four and to use all the water for cooking and drinking, it will take minimum 3 jug per week. That will cost $7.99/jug * 3 jugs * 54 weeks = $1294/year. A RO-Pure water system only cost $100/year to operate and your family gets unlimited pure drinking water. That is $1194 SAVING / year.
$0.25 / Day
Lets count pennies. A person needs 7 glasses of water a day to be healthy. Unless you are drinking tap water or cooking with tap water, you will be drinking a combination of soft drink, juices, beverages, or buy bottled water.... the average cost is $0.35 / glass.
 |
Cost
per person each day is
$0.35 * 7 = $2.45 / day This is what we call great return on your investment and health. 25 Cents/day...less than the cost for a cup of coffee... |
| Hook-Up To Refrigerator Free |
 |
Free "T"-splitter so you run a line to your fridge. Saves you money on fridge filters. Please enter it at the "special notes" when you are ordering online or inform our operator when you ordering by phone. Please indicate this at the special note section when you order. |
Filters
Reverse Osmosis: The 4-Stages of
Filtration. Schedule for residential
application.
1. Merlin Reverse Osmosis
Carbon/Sediment Pre-Filter. Should
be changed every 6 months.
2. Merlin Reverse Osmosis Membrane (set
of two). Should be changed every 3
years.
3. Merlin Reverse Osmosis Carbon
Post-Filter. Should be changed
every 8-12 months.
Warranty
An extensive
3-year
limited
warranty for residential
application. (excluding consumable
filters). Call our customer hot
line (416) 618-3532.
