Rainfresh - HP1 - 1 micron(um) $1407.04 CAD quantity:     Read all Reviews   Write Review

High Performance Sediment Filter Cartridge

Rainfresh HP1 cartridge is a melt-blown depth filters designed for efficient removal of particulate matter and fine sediment from water. These new generation cartridges provide an efficient, cost effective filtration solution for residential, food & beverage, pharmaceutical, electronics and other applications.

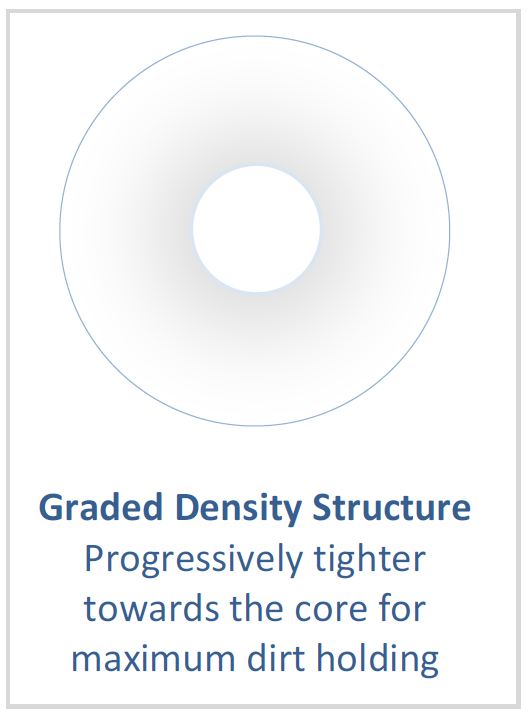

HP1 is constructed from 100% adhesive-free polypropylene microfiber media bound by a compact melt-blown process to form a true graded density depth filter. This unique construction results in larger void volume that provides excellent flow characteristics with low pressure-drop and high efficiencies. The graded density structure enables larger particles to be trapped towards the periphery while smaller particles are progressively trapped towards the core. This structure generates a high dirt-holding capacity for the cartridge.

BENEFITS

• High efficiency
• Higher flow rates
• Graded density structure for better dirt-holding capacity
• 100% food-grade polypropylene media
• Universal Fit – Fits most standard 10” housings

• Model: HP1
• Cartridge Type: Double Open End with Polyethylene end gaskets
• Length (Inch): 9.75” (247 mm)
• O.D (Inch): 2.65” (67 mm)
• I.D (Inch): 1.10” (28 mm)
• Micron Rating: 1μ nominal
• Operating Temp: 100°F (37.8°C)
• Max Flow Rate: 8 GPM (30 LPM)

• All dimensions are nominal
• WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

TESTING & CERTIFICATION

Component certified by CSA International to NSF/ANSI 61 and CSA B483.1 for material requirements only.
Certification does not extend for use with competitive housings.
